ACP Seven PVDF Technical Specifications

ACP Seven PVDF—a high-performance variant of aluminum composite panels, alongside acm pvdf and aluminium pvdf solutions—sets the standard for durability, weather resistance, and aesthetic consistency in architectural applications. Designed for both interior and exterior use (from commercial building facades to luxury hotel interiors), its technical specifications are tailored to meet the rigorous demands of modern construction. For wholesalers serving architects, construction firms, or hospitality developers, partnering with a manufacturer that delivers ACP Seven PVDF with certified technical performance is essential. 2025 Foshan Jiashuncai Building Materials Co., Ltd. (JiaShunCai), a leading provider of aluminum composite panels (known as ALUCOBOND in Europe and Africa), produces ACP Seven PVDF under ISO9001 quality management systems—featuring PE cores, premium PVDF coatings, and versatile shaping capabilities (curves, routed edges, punches) that align with diverse architectural needs.

Core Material Specifications of ACP Seven PVDF

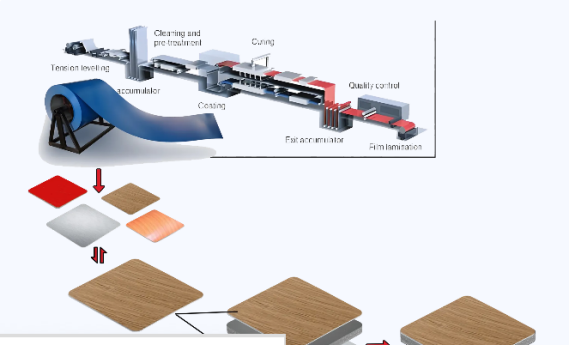

• Panel Structure and Layer Composition for ACP Seven PVDF: ACP Seven PVDF from JiaShunCai follows a precise 3-layer structure that balances strength and lightweight performance. The core is a high-density PE (polyethylene) layer (thickness 2–4mm) that provides rigidity while keeping the panel light (3–5 kg/m²). This core is sandwiched between two aluminum sheets (0.2–0.5mm thick, grade 3003 H14—ideal for corrosion resistance and formability). The outer layer is coated with aluminium pvdf (PVDF resin, ≥70% solid content) via a roller-coating process, ensuring uniform coverage and adhesion. For example, a standard 4mm-thick ACP Seven PVDF panel has a 0.3mm aluminum sheet on each side, a 3.4mm PE core, and a 20–30μm PVDF coating—striking the perfect balance for facade cladding or interior wall applications. For wholesalers, this structured composition is a selling point: it ensures consistent performance across bulk orders, avoiding variations that cause on-site installation issues.

• Dimensional Tolerances of ACM PVDF: ACM PVDF(including ACP Seven PVDF) adheres to strict dimensional tolerances to ensure compatibility with construction details. JiaShunCai’s panels have a length tolerance of ±2mm per 2000mm (critical for seamless jointing in large facades) and a thickness tolerance of ±0.1mm (ensuring uniform appearance when installed side-by-side). Width options range from 1220mm to 1500mm (standard) and can be customized for bulk orders, while length can be up to 6000mm (reducing the number of joints in tall buildings). A wholesaler supplying ACP Seven PVDF for a 10-story commercial facade can rely on these tolerances to ensure panels align perfectly, minimizing on-site trimming and waste. Wholesalers can emphasize this to clients: precise dimensions reduce installation time and labor costs, making aluminium pvdf panels a cost-effective choice.

PVDF Coating Technical Performance of ACP Seven PVDF

• Weather Resistance and Durability of Aluminium PVDF: The aluminium pvdf coating on ACP Seven PVDF is the key to its long-term performance—JiaShunCai uses premium PVDF resin (meets AAMA 2605 standards) that delivers exceptional weather resistance. It has a fading resistance rating of ΔE ≤ 1.5 after 2000 hours of accelerated UV testing (equivalent to 10+ years of outdoor exposure), ensuring color consistency even in sunny or coastal regions. The coating also resists salt spray corrosion (passes 1000 hours of salt spray testing per ISO 9227), making ACP Seven PVDF ideal for coastal buildings. For example, a hotel facade using acm pvdf panels in a metallic finish will retain its shine for over a decade, without peeling or chalking. For wholesalers, this durability is a major advantage: it reduces client callbacks for maintenance or replacement, strengthening long-term relationships.

• Mechanical Properties of ACP Seven PVDF Coating: The ACP Seven PVDFcoating also excels in mechanical performance—its pencil hardness is ≥ 2H (resisting minor scratches from construction or daily use), and it has a bending resistance of ≥ 3mm (allowing the panel to be curved without cracking the coating). The adhesion strength between the PVDF layer and aluminum sheet is ≥ 5MPa (per ISO 4624), ensuring the coating doesn’t delaminate even in temperature fluctuations (-40°C to 80°C). A retail store using aluminium pvdf panels for interior wall cladding can withstand frequent cleaning and product handling without coating damage. Wholesalers can market this as a low-maintenance benefit: ACP Seven PVDF panels stay looking new longer, cutting down on lifecycle costs for clients.

Technical Specification Comparison ACP Seven PVDF vs. Standard ACP

Application-Specific Technical Adaptations for ACP Seven PVDF

• Fire-Retardant ACP Seven PVDF for High-Rise Buildings: For high-rise commercial or residential projects, JiaShunCai offers ACP Seven PVDF with fire-retardant (FR) PE cores (meeting GB 8624 B1 grade). These panels have a limited oxygen index (LOI) ≥ 32%, ensuring they don’t propagate flame in case of fire. The FR core also reduces smoke emission, aligning with strict building codes for tall structures. A wholesaler supplying acm pvdf for a 20-story apartment building can rely on this fire performance to meet local regulations, avoiding code violations. This adaptation expands the product’s market reach: ACP Seven PVDF becomes viable for projects with strict fire safety requirements.

• Thermal Insulation ACP Seven PVDF for Energy-Efficient Design: JiaShunCai also offers ACP Seven PVDF with enhanced thermal insulation (by integrating a layer of rockwool or XPS into the PE core). These panels have a thermal conductivity of ≤ 0.04 W/(m·K), reducing heat transfer through building facades and lowering HVAC costs. For a hotel using aluminium pvdf panels with thermal insulation, this translates to 20–30% energy savings annually. The panels retain all the standard ACP Seven PVDF performance features (weather resistance, durability) while adding energy efficiency—a key selling point for eco-conscious clients. For wholesalers, this adaptation caters to the growing demand for sustainable building materials, making ACP Seven PVDF a future-proof product.

ACP Seven PVDF FAQS

Does ACP Seven PVDF Meet International Building Codes?

Yes—JiaShunCai’s ACP Seven PVDF meets global standards, including AAMA 2605 (for PVDF coating performance), ISO 9001 (quality management), and GB 8624 (fire safety for China). It also complies with CE (for European markets) and ASTM (for North American markets) standards, ensuring compatibility with international building codes. For wholesalers supplying cross-border projects (e.g., a hotel in Europe using acm pvdf), this compliance eliminates regulatory barriers, making bulk exports seamless.

Can ACP Seven PVDF Be Customized for Bulk Orders?

Absolutely—JiaShunCai offers customization for ACP Seven PVDF bulk orders, including custom dimensions (width up to 1500mm, length up to 6000mm), color matching (via RAL or Pantone codes), and special coatings (e.g., anti-graffiti for urban projects). They also provide custom shaping (curves, punched patterns) at the factory, reducing on-site work for clients. A wholesaler ordering aluminium pvdf for a branded retail chain can get panels in the brand’s signature color, ensuring consistency across all store locations.

What Is the Shelf Life of ACP Seven PVDF?

When stored properly (in a dry, covered area, away from direct sunlight and moisture), ACP Seven PVDF has a shelf life of 12 months from the production date. JiaShunCai packages panels in moisture-resistant film and sturdy pallets, ensuring they remain in perfect condition during storage and transport. For wholesalers managing inventory, this long shelf life reduces waste: bulk orders can be stored for months without performance degradation, aligning with project timelines.

Is ACP Seven PVDF Suitable for Both Interior and Exterior Use?

Yes—ACP Seven PVDF is designed for dual use. Its weather resistance makes it ideal for exteriors (facades, canopies, signboards), while its aesthetic versatility and low maintenance suit interiors (wall cladding, ceilings, furniture). The same acm pvdf panel can be used for a building’s exterior facade and interior lobby, ensuring design consistency. For wholesalers, this dual use simplifies inventory: one product caters to both interior and exterior projects, reducing stock complexity.

How Does JiaShunCai Ensure Consistent Quality for ACP Seven PVDF Bulk Orders?

JiaShunCai implements strict quality control at every stage of ACP Seven PVDF production: raw material inspections (aluminum sheets, PVDF resin), in-line testing (coating thickness, adhesion), and final inspections (dimensional tolerances, appearance). They also provide batch test reports for bulk orders, documenting performance metrics (e.g., UV resistance, fire safety) for client verification.
